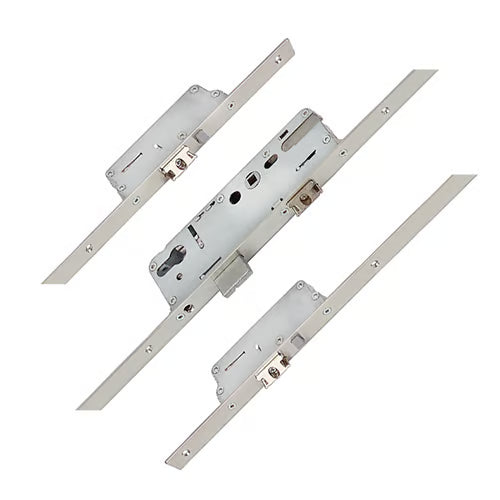

AutoEngage Latch Deadbolt 2 Autolatches Multipoint Door Lock

Product Overview: Lockmaster AutoEngage Multipoint Door Lock

The Lockmaster AutoEngage multipoint door lock is designed for enhanced security and convenience, featuring a robust configuration of 1 deadbolt, 1 latch, and 2 autolatches. This innovative locking system is known for its automatic locking mechanism, often referred to as a "slam shut" lock, ensuring your door is securely locked as soon as it closes.

Key Features:

• Automatic Locking: The lock engages automatically when the door is closed, with two security latches firing to provide up to 20mm of deadbolt engagement.

• Easy Operation: No need to lift the handle for locking; simply close the door. For added security, the door can be deadlocked using a key or thumb turn.

• Distinctive Design: The Yale AutoEngage features unique deadlatch locking points that resemble standard latches, integrated within the main gearbox.

• Versatile Compatibility: Suitable for both timber and composite doors, available in Classic and Heritage styles to fit various door designs.

• Compact Gearbox: The AutoEngage gearbox measures only 201mm high, with a top measurement of 82mm from the spindle, designed for easy installation.

• Durability: Tested to PAS24:2016 standards, corrosion tested to BS EN 1670:2007 Grade 4 for 240 hours, and endurance tested for 100,000 cycles.

Installation and Operation:

• Backset Measurement: Choose from 45mm or 55mm backsets. Remember to allow 2-3mm for the faceplate when measuring.

• Locking Mechanism:

  1. Close the door to engage the latch and locking points automatically.
  2. Turn the key to deadlock the mechanism for added security.

• Unlocking Process:

  1. Turn the key to unlock.
  2. If applicable, push the lever down to retract the locking points, or turn the key a quarter turn to retract the latch.

Specifications:

• Manufacturer: Lockmaster
• Backset: Select from drop-down options
• Centres PZ: 92mm
• Faceplate: Select from drop-down options
• Spindle Size: 8mm
• Deadbolts: 1
• Latch: 1
• Autolatches: 2
• Main Gearbox: Latch & deadbolt
• Operation: Select from drop-down options
• Spindle: Single 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1488mm
• Height: 1770mm
• Top Autolatch to Spindle: 728mm
• Bottom Autolatch to Spindle: 760mm
• Door Material: Timber, Composite

Explore our range of associated products for the Lockmaster AutoEngage multipoint door locks, including keeps, spindles, handles, and accessories, to complete your door security solution.
