Description
Introducing the Atlanta Range Hoppe Handles
Elevate your door hardware with the stylish and functional Hoppe handles from the Atlanta range. Designed with precision, these handles feature unsprung 92pz internal and external levers, ensuring a smooth operation every time.
Key Features:
-

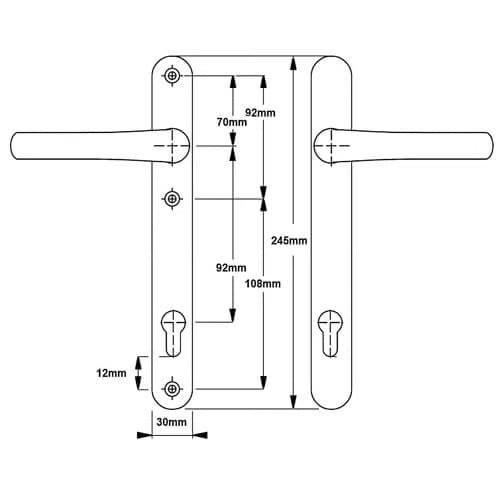

Dimensions: Backplate size of 245mm x 30mm, perfect for a variety of door styles.
-
Fixing Details: Equipped with three fixing screws, the middle screw is strategically placed 23mm below the lever for optimal stability. The distance between the top and bottom fixing screws is 200mm, with the bottom screw located 12mm below the euro profile cut-out.
-

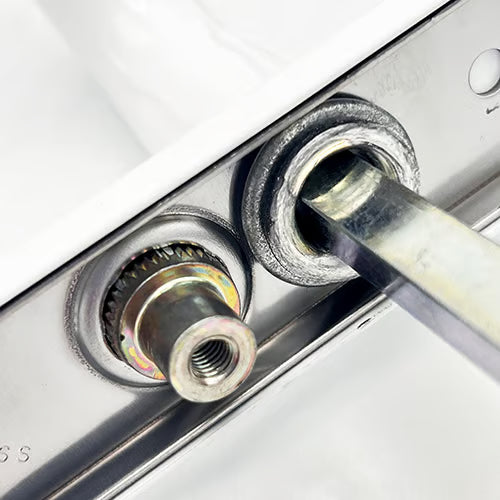

Complete Set: Each pair comes with an 8mm square spindle and two color-coordinated M5 bolts, designed to accommodate door thicknesses ranging from 56mm to 70mm.
Product Specifications:
- Type: Unprung
- Backplate Type: 3346
- Length: 245mm
- Width: 30mm
- Centres (PZ): 92mm
- Screw Centres: 200mm (top to bottom)
- Base of Euro to Bottom Screw: 12mm
- Top Screw to Spindle: 23mm
- Supplied With: Spindle & screws
- Packaging: Supplied as a pair, polybagged
- Handing: Non-handed
Upgrade your doors with the Atlanta range Hoppe handles, combining durability and elegance for any home or office setting.
