Product Information

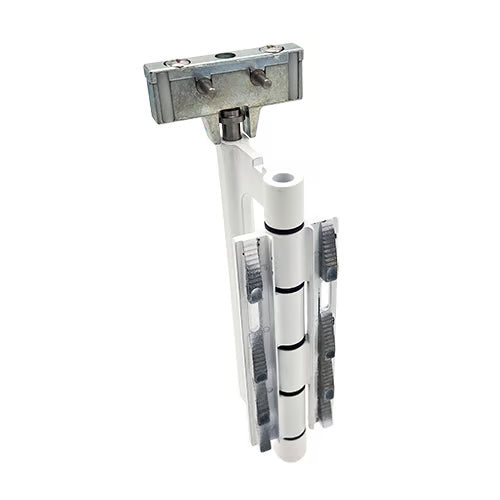

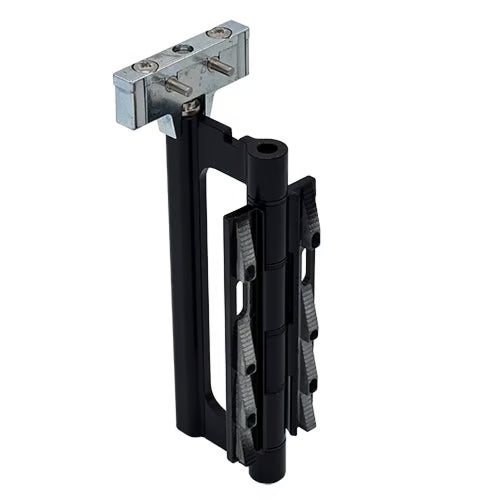

Introducing our premium replacement top guide designed specifically for repairing existing bifold installations. This assembly features a robust 160 x 60mm support bar, ensuring durability and reliability. It is strategically positioned above the roller at the top of bi-fold door installations, where two hinged door leaves glide seamlessly along the running track. The top guide works in conjunction with the bifold roller to provide essential support for moving door panels, keeping them securely in the track. Additionally, this versatile top guide can be inverted and utilized as a bottom roller by incorporating rollers from the bottom rollers you are replacing.

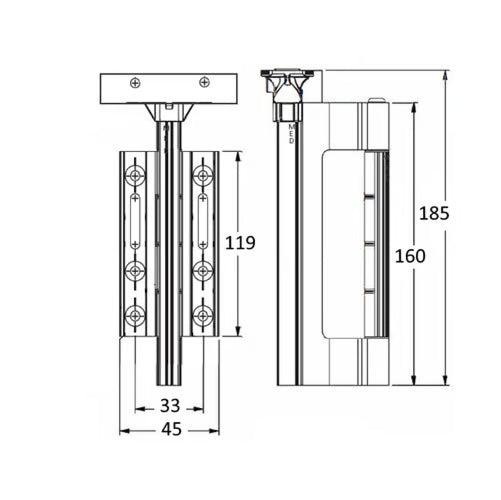

Product Specification
- Part Type: Top Guide
- Overall Height: 185mm
- Handle Height: 160mm
- Hinge Height: 119mm
- Hinge Width (when open): 45mm
- Diameter of Knuckle: 15.8mm
- Hinge Screw Centres: 33mm
- Fixing Holes: 4
- Countersunk Fixing Holes: 4
- Top to Bottom Fixing Hole: 72mm
- Top to Middle Fixing Hole: 45mm
- Middle to Bottom Fixing Hole: 26mm
- 2nd to 4th Fixing Hole: 24mm-34mm
This top guide assembly is an essential component for maintaining the functionality and efficiency of your bifold doors, ensuring smooth operation and longevity.
