Description
Product Specification

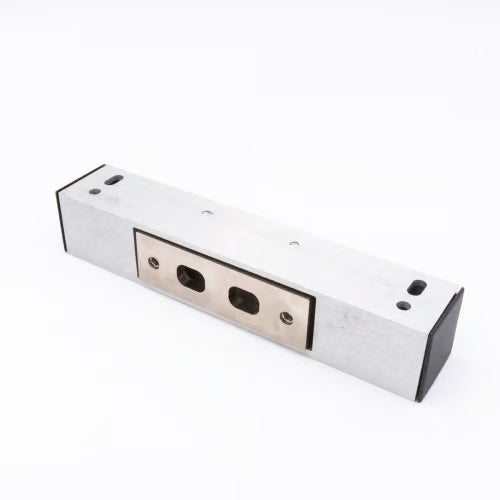

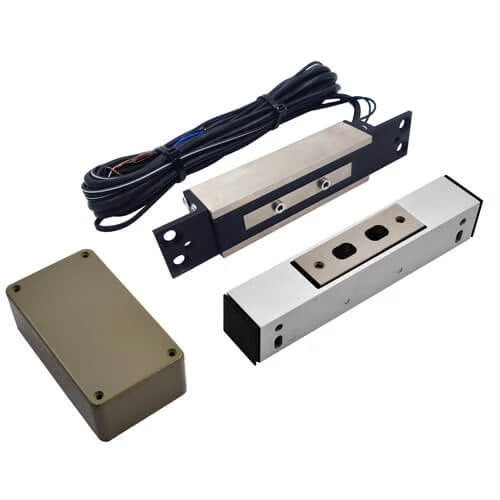

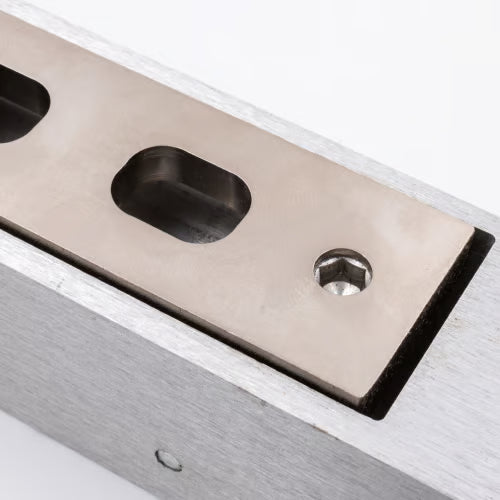

Product Name: Adams Rite Mini Shear Magnets
Description:
High-quality mini shear magnets designed for applications where the armature must pass over the face of the magnet. These magnets are compatible with various frame materials including timber, steel, aluminum, and glass, making them suitable for internal use.
Current Consumption:
-
Pull In:
- 1500mA at 12V DC
- 1500mA at 24V DC
-
Holding:
- 500mA at 12V DC
- 400mA at 24V DC
Dimensions:
-
Mortice:
- Height: 164mm
- Width: 30mm
- Depth: 25mm
-
Surface:
- Height: 200mm
- Width: 38mm
- Depth: 38mm
Holding Force:
- 1500KG
- 5 Star strength grade
Important Note:
This item is sealed with a tamper-evident security seal due to its nature. Please ensure that the item matches the description on the invoice and is necessary for your application before breaking this seal. Once the seal is broken or the item is removed from its packaging, it is considered used and cannot be returned unless it becomes faulty. Returns for faulty items will be processed according to the relevant manufacturer's return procedures.
