Description
Product Specifications
Power Size: EN 3
Function: Closing, Latching
Cover: None
Arm Application:
- Fig 1
- Fig 6 (bracket available separately)
- Fig 61 fixing positions
Testing and Compliance:
- Successfully type tested for conformity to all requirements of BS EN 1154:1997
- Tested for door width: 950 mm
- Tested for door weight: 60 kg
Classification:
- Fig 1/Fig 61: 4 | 8 | 3 | 1* | 1 | 3
- Fig 6: 3 | 8 | 3 | 1* | 1 | 3
Fire Testing: Fire tested to BS EN 1634-1: suitable for 30, 60, and 120 minute timber fire doors
Certification:
- CE: AD0178, DOP HUK0018
- Certifire: CF5629

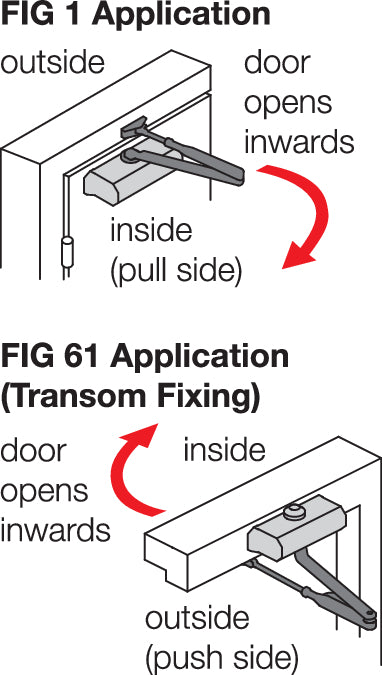

Arm Application
- Figures: 1 and 61
- Arm Type: Scissor arm, detachable joint, screw, adjustable

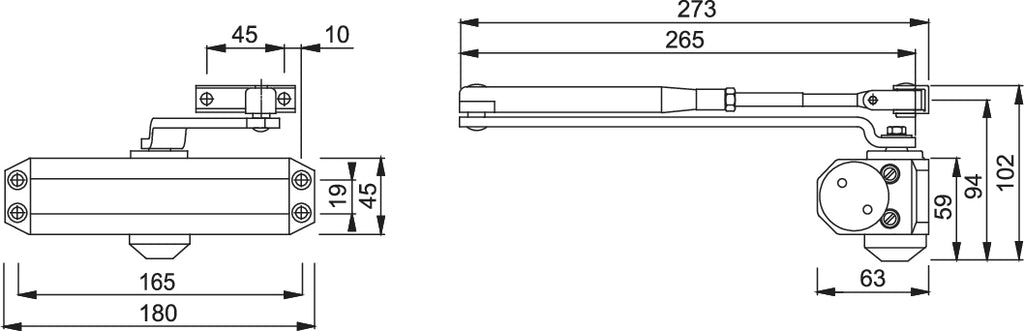

Mechanism Dimensions and Fixing Centres
- Dimensions: 180 x 42 x 63 mm
- Fixing Centres: 164 x 19 mm
Fixings: Suitable for timber doors
Mechanism Function: Closing/Latching speed
Opening Angle: Maximum 180° opening
Commodity Class: Door closing devices surface overhead
Type: Mechanism only
Tested Door Specifications
- Width: 950 mm
- Weight: 60 kg
Mechanism Type: Rack & pinion
Door Type: Wooden door
