Description
Specifications
- Power Size: Adjustable from EN 2 to EN 4 via spring tension.
-
Functionality:
- Closing
- Latching
- Backcheck
- Cover Design: Radiused for a sleek appearance.

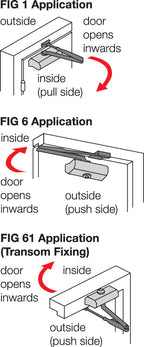

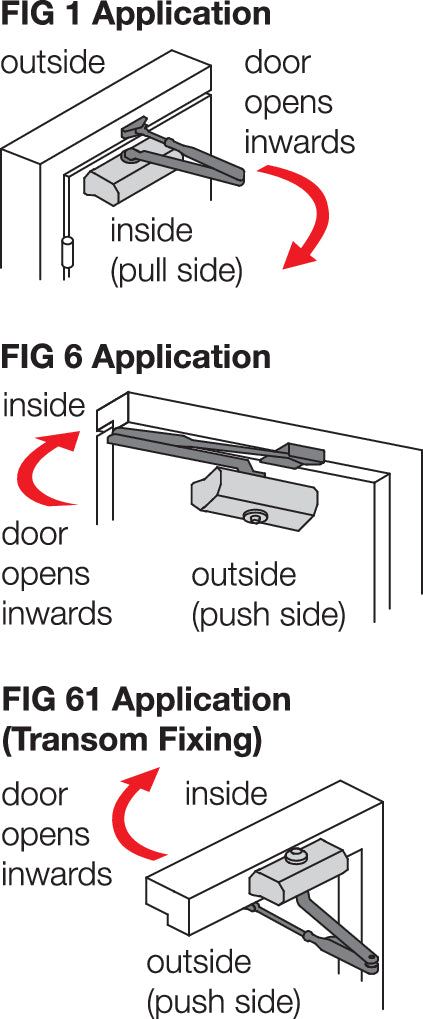

- Arm Application: Compatible with fixing positions in Fig 1, Fig 6, and Fig 61.
- Testing Compliance: Successfully type tested to meet all requirements of BS EN 1154:1997.
-
Tested Dimensions:
- Door Width: 1,100 mm
- Door Weight: 80 kg
-
Classification:
- Fig 1/Fig 61: 4 | 8 | 4/2 | 1* | 1 | 4
- Fig 6: 4 | 8 | 4/2 | 1* | 1 | 4
-
Fire Testing:
- Compliant with BS EN 1634-1, suitable for:
- 30, 60, and 120 minute timber fire doors
- 240 minute steel fire doors
- Certification
- CE Marking: AD0124, DOP HUK0001
- Certifire: CF294
Performance Notes
The AR1500 meets the opening force recommendations of BS 8300 and ADM when installed in Fig 1 on a door with a minimum width of 938 mm. However, it is important to note that other installed hardware, door seals, and differential air pressure may affect the performance, meaning the door closer alone cannot ensure compliance with BS 8300 and ADM.
Arm Application Details
-
Arm Type:
- Scissor arm
- Fixed joint
- Flat form
- Adjustable
-

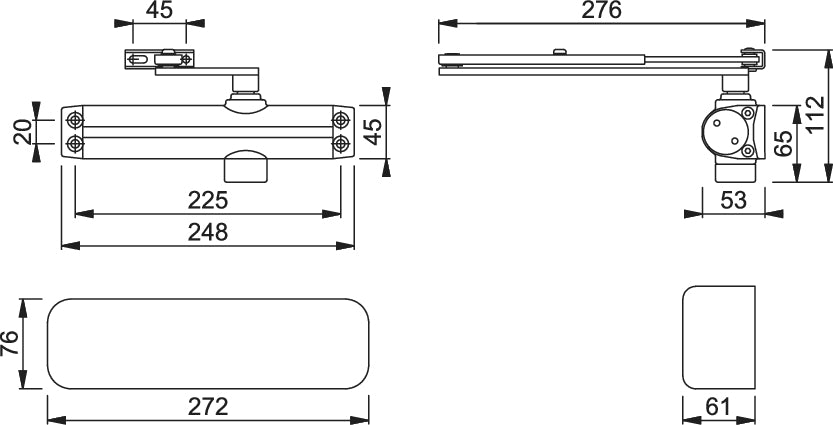

Mechanism Dimensions:
- 248 x 45 x 53.5 mm
- Fixing Centres: 225 x 20 mm
-
Finishes:
- Arm Finish: ABZ antique bronze
- Cover Finish: ABZ antique bronze
- Fixings: Designed for timber doors.
Mechanism Functionality
-
Functions:
- Closing/latching speed
- Backcheck
- Spring adjustment
- Opening Angle: Maximum of 180°.
Classification: Door closing devices, surface overhead.
This comprehensive overview highlights the AR1500's robust design and functionality, making it an excellent choice for various door applications.
