Description
Testing Standards:
- DIN EN 13126-3: H2/180-0-3-0-3-3-C1-2
- RAL-GZ 607/9, RAL200
- Complies with DIN EN 1627-1630 RC1-6
Locking Mechanism: Turn cylinder with a reversible key for ease of use.
Design Features:
- Stop-in position at 90° for optimal door operation.
- Partial cover cap for a sleek appearance.
- Constructed from zamak with supporting lugs for durability.
Spindle: HOPPE solid spindle, ensuring strength and reliability.
Fixing Method: Concealed fixing for M5 thread screws, providing a clean installation.

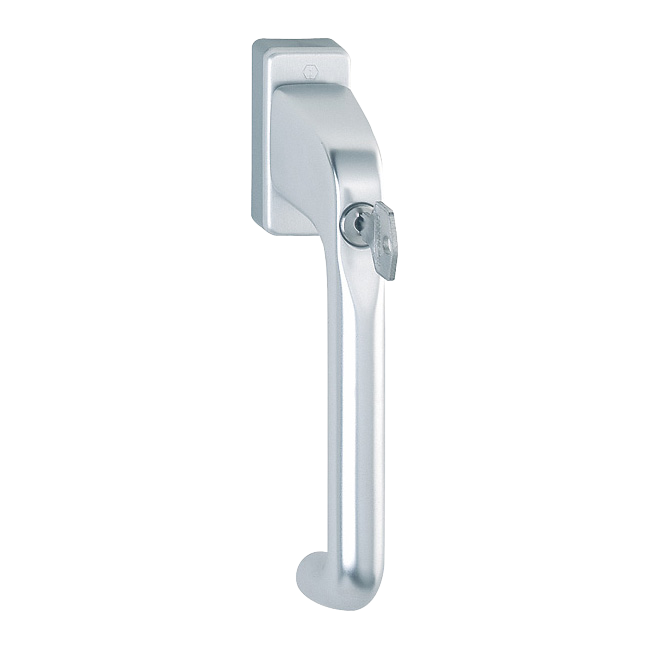

Product Type: Lockable handle for tilt/slide doors.
Rose Shape: Angular rose (rectangular) design.
Version: Secu200 for enhanced security.
Grade: Grade 2, indicating a high level of security.
Additional Specifications:
- Locking Mechanism Model: Turn cylinder 4W1323.
- Commodity Class: Aluminium for lightweight and corrosion resistance.
- Diameter of Lug: 10 mm for compatibility with various door systems.
- Stop Position: 90° for effective door operation.
- Spindle Size: 7 mm, ensuring compatibility with standard fittings.
This handle combines modern design with robust security features, making it an ideal choice for residential or commercial applications.
