Description

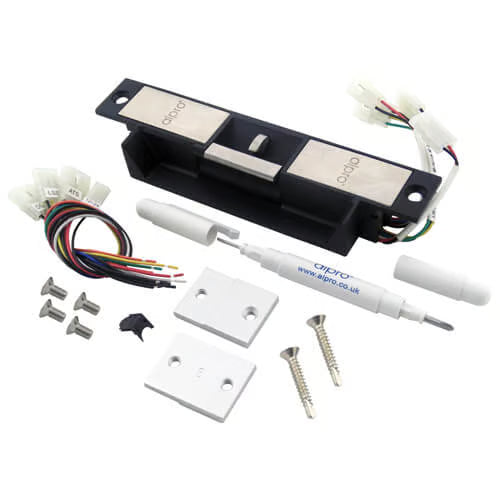

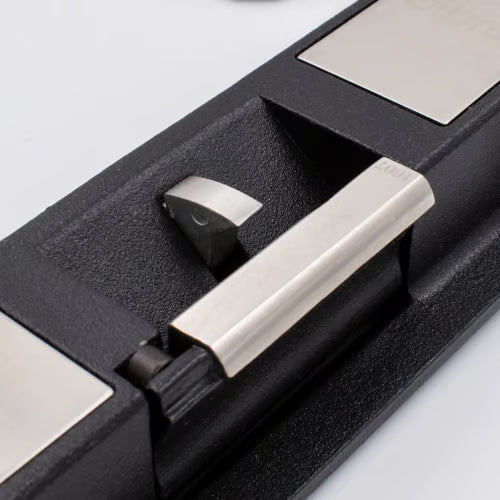

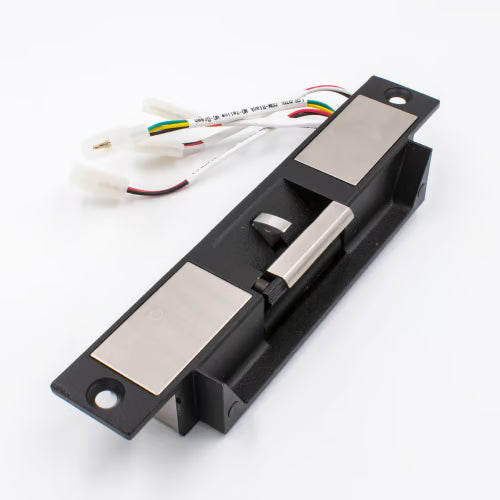

Introducing the AL2000 Electric Release
The AL2000 is designed for high-security applications, offering exceptional reliability and versatility. With its selectable voltage options of 12V or 24V, you can easily adapt it to your specific wiring needs. The field-reversible fail safe/fail secure operation ensures that you have the flexibility to choose the best configuration for your security requirements.
Key Features:
-
Monitoring Capability: Stay informed about the status of your electric release.
-
AC Power Compatibility: The optional RM1 rectifier allows for seamless operation on AC power when necessary.
-
Versatile Frame Compatibility: Suitable for Aluminium, Steel, and Timber frames, making it a perfect choice for various installations.
Specifications:
- Type: Mortice
- Style: ANSI
- Jaw: None Adjustable
- Jaw Dimensions:
- Overall Dimensions: (H) 175mm x (W) 44.5mm x (D) 26mm
- Field Reversible: Fail safe / fail secure
- Current Consumption: 220mA at 12V DC, 110mA at 24V DC
- Holding Force: 1380kg
- Latch Accommodation: 13mm (including a 3mm air gap)
The AL2000 is the ideal solution for those seeking a robust and adaptable electric release for their security systems.
