Description
Product Information

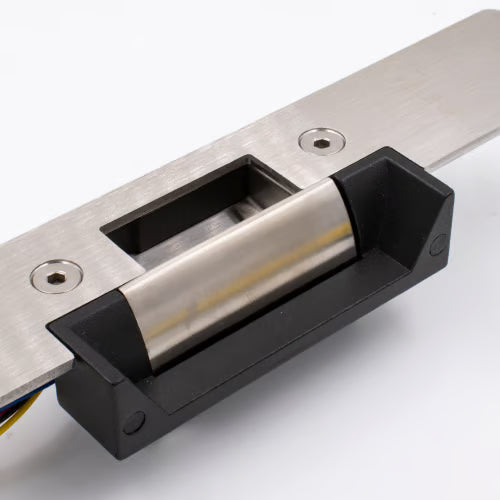

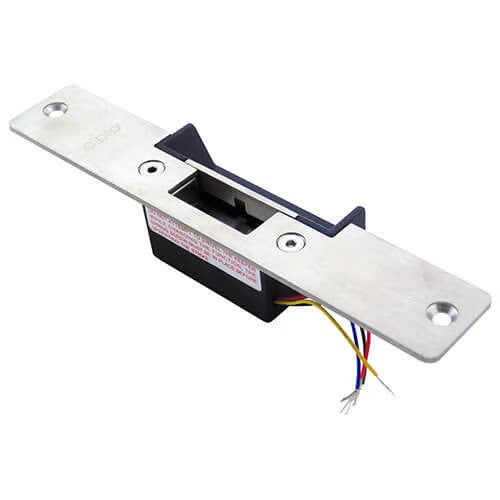

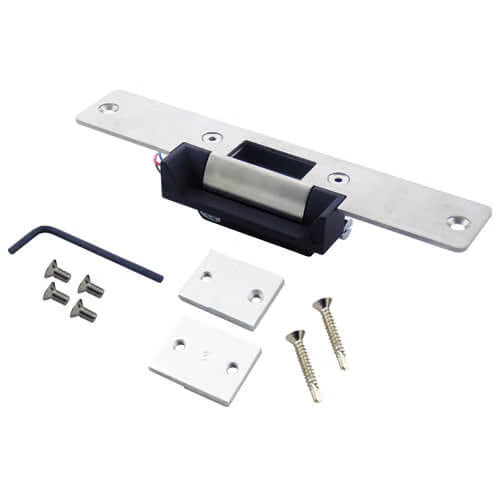

Introducing the Alpro ANSI style release, designed specifically for timber doors. This robust release features a long 200mm stainless steel faceplate and is ideal for use with mortice latches. It offers selectable 12v or 24v operation, ensuring versatility in wiring configurations. Additionally, the release is field reversible, allowing you to switch between fail-safe and fail-secure modes effortlessly. For those needing AC power compatibility, an RM1 rectifier module is available for separate purchase. For more detailed inquiries, feel free to reach out to our technical team.
Product Specification
- Type: Mortice
- Style: ANSI
- Jaw: Non adjustable
- Dimensions: (H) 200mm x (W) 44.5mm x (D) 35mm
- Field Reversible: Fail safe / fail secure
- Current Consumption: 200mA at 12v DC, 100mA at 24v DC
- Holding Force: 1750kg
- Latch Accommodation: 13mm (including 3mm air gap)
