Description

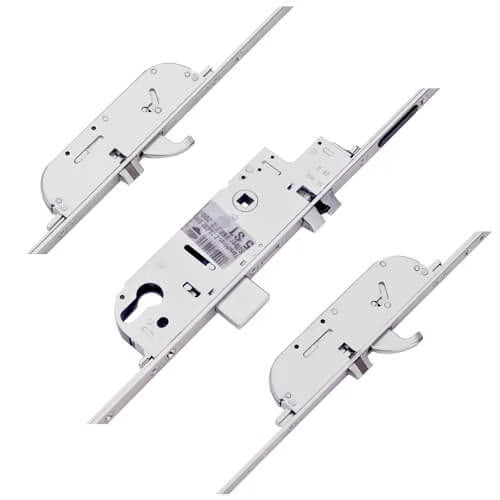

Product Overview: Maco A-TS Multipoint Door Lock
The Maco A-TS multipoint door lock is engineered for security and convenience, featuring a robust design with 2 hooks, 1 deadbolt, 1 latch, and 2 autolatches. This innovative locking system ensures that your door is securely locked at multiple points with a simple action.
Key Features:
-
Automatic Locking Mechanism: The A-TS lock automatically engages three locking points—two hooks and a deadbolt—when the door is closed, providing enhanced security without the need for a key.
-
Efficient Gasket Compression: Upon closing, the latches create a tight seal, preventing draughts and moisture from entering your space.
-
Magnetic Trigger System: This feature ensures that all latches engage perfectly every time the door is closed, enhancing reliability.
-
Versatile Compatibility: The A-TS lock is compatible with various door materials, including UPVC, aluminium, timber, and composite. It can also be integrated with Maco motors for a fully motorized access control solution.
Identification and Variants:
Identifying the Maco A-TS lock is straightforward due to its unique latch and hook configuration. While our version is the standard model, variants with day release and built-in limiters are available. The A-TS lock may also be referred to as the Maco Z-TA automatic lock, which is interchangeable if the locking points match.
Specifications:
- Manufacturer: Maco
- Backset: Customizable (allow 2-3mm for faceplate)
- Centres PZ: 92mm
- Spindle Size: 8mm
- Operation: Automatic locking
- Handing: Non-handed
-
Dimensions:
- Height: 1750mm
- Distance Between Inner Locking: 1490mm
- Top Hook to Spindle: 730mm
- Bottom Hook to Spindle: 760mm
Operation Instructions:
-
To Lock: Simply close the door. The latches will engage automatically, securing the door.
-
To Unlock: Use a key from the outside or a thumbturn from the inside. A lever can also be used to retract the locking points.
Additional Products:
We offer a range of associated products for the Maco A-TS multipoint door lock, including keeps, spindles, handles, and other accessories to enhance your locking system.
For any specific requirements or to explore the available variants, please reach out to our technical team for assistance.
