Description
Product Overview

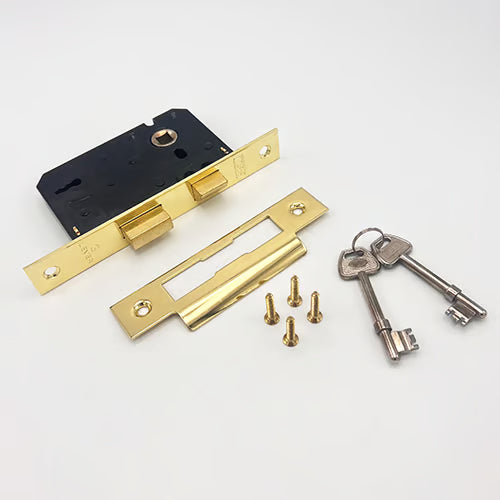

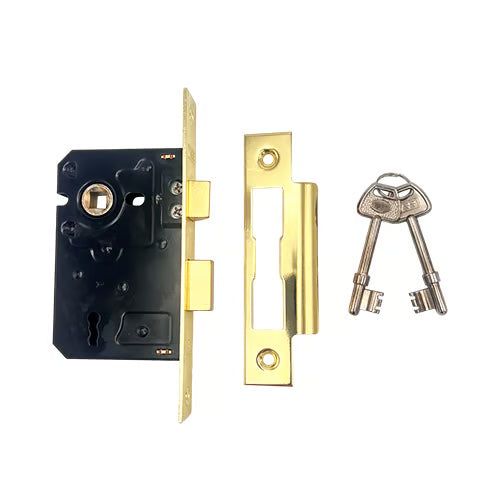

Introducing the TSS 3 Lever Mortice Sash Lock, the ideal choice for internal wooden doors. This lock combines affordability with a standard level of security, making it a practical solution for various applications.
Key Features
-
Compact Design: One of the smallest lock cases available, perfect for retrofitting on wooden doors.
-

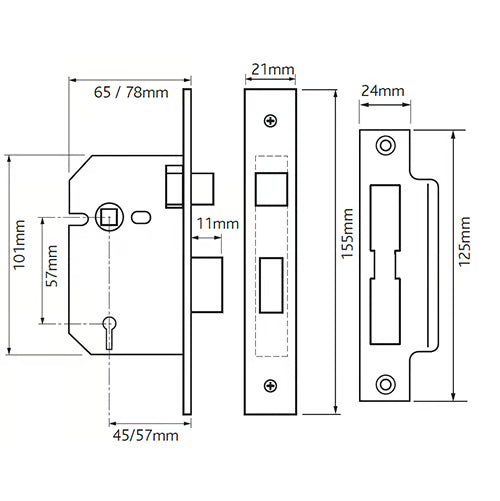

Unique Measurements: Distinctive sizing sets it apart from other mortice locks; refer to the line drawing for specifics.
-
Finish Options: Available in polished brass or polished chrome, packaged in boxes or clam packs for retail display.
-
Complete Range: The TSS 3 lever series includes a deadlock, sash lock, and bathroom lock, providing a comprehensive interior door solution.
-
Deadbolt Specifications: The deadbolt throws 11mm, and for enhanced security against sawing attacks, consider upgrading to a 5 lever version.
-
Dual-Sided Operation: Lock and unlock the deadbolt from either side using a key, while the latch is easily withdrawn by moving the handle.
-
Matching Striking Box: Supplied with a striking box that matches the lock finish.
-
Versatile Use: Suitable for most internal wooden doors, non-handed for left or right-hinged doors, and can open inwards or outwards.
-
Key Options: Comes with 2 steel keys; additional keys can be cut upon request. Choose between genuine or copy key blanks.
-
Keyed Alike Option: Locks can be keyed alike for convenience, with same-day dispatch available for most orders.
-
Associated Parts Available: A range of key blanks and levers can be selected from the associated products on this page.
Important Notes
-
Not Suitable for Fire Doors: Ensure compliance with safety regulations.
-
Quality Assurance: TSS believes in providing high-quality locks and ironmongery products without the hefty price tag.
-
Versatile Applications: The TSS product range caters to domestic, commercial, and industrial specifications.
Installation Guidance
When replacing an existing lock, be aware that the new mortice lock may differ in size. Adjustments can be made using a hammer and chisel if necessary. For new timber doors, consider using Souber’s DBB morticer for efficient installation.
Specifications
- Product Category: Mortice Sashlock
- Product Type: 3 Lever
- Case Colour: Black
- Handle Piercing Size: 38mm
- Case Height: 101mm
- Centres: 57mm
- Faceplate Height: 155mm
- Faceplate Width: 21mm
- Deadbolt Throw: 11mm
- Follower Size: 8mm
- Keys Included: 2
- British Standard: No
- UKCA Marked: No
- CE Marked: No
- Certifire Approved: No
- Fire Rated: No
- Can be Keyed Alike: Yes
- Handed: Non-handed
- Escutcheon Plates Supplied: No
Conclusion
Choose the TSS 3 Lever Mortice Sash Lock for a reliable, cost-effective solution for your internal door security needs. With its robust features and versatile applications, it’s the perfect addition to any home or business.
