Product Information

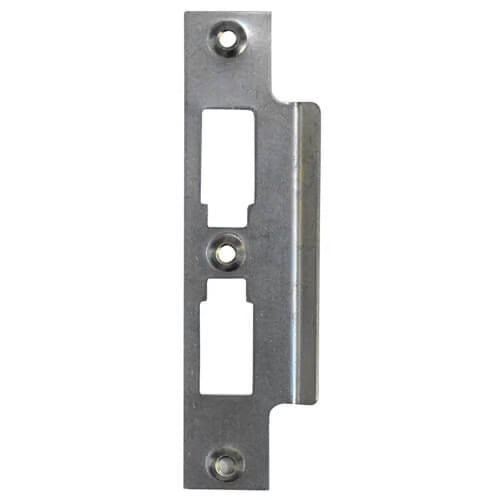

These non-handed striking keep plates are designed to perfectly suit the Union 2277 mortice sashlocks.
Available in two elegant finishes: brass or satin.
Each plate is supplied individually, and please note that fixing screws are not included.
Product Specification
- Overall height: 140mm
- Width (excluding lip): 26mm
- Overall width (including lip): 41mm
- Lip height: 87mm
- Distance from top screw to bottom screw: 124mm
- Distance from top screw to middle screw: 62mm
- Latch/deadbolt receiver height: 33mm
- Latch/deadbolt receiver width: 14mm (widest part)
