Product Overview: Union StrongBOLT 3 Lever Mortice Sash Lock
The Union StrongBOLT 3 lever mortice sash lock is an ideal choice for enhancing security on internal wooden doors. This lock combines robust features with a sleek design, ensuring both safety and style.
Key Features:
-
Chamfered Bolt Design: Enhances performance under side load and resists drilling attacks.
-
Security Features: Anti-pick, anti-saw, and anti-drill capabilities for added protection.
-

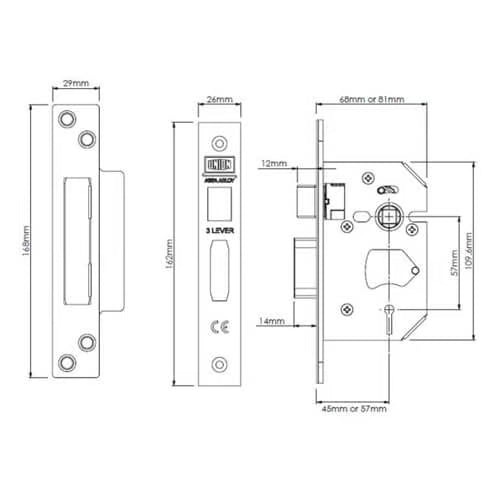

Unique Measurements: Distinctive red lock case with specific dimensions; refer to the line drawing for details.
-
Finish Options: Available in polished brass or satin chrome, packaged in boxes or clam packs for retail display.
-
Complete Interior Solution: The 3 lever range includes a deadlock, sash lock, and bathroom lock.
-
Deadbolt Specifications: Throws 14mm; can be locked/unlocked from either side using a key.
-
Versatile Use: Suitable for most internal wooden doors, non-handed for left or right hinges.
-
Keying Options: Supplied with 2 steel keys; additional keys can be cut upon request.
-
Fire Safety Compliance: CE and UKCA marked, tested to EN 1634-1 for 60-minute fire doors.
-
Independent Testing: Certified by Certifire for fire door suitability.
Installation Notes:
-
Ensure compatibility with door specifications and fire assessments.
-
Not suitable for environments requiring an escape function.
-
Recommended for internal use; for external doors, consider a British Standard BS3621 product.
Company Heritage:
Union has been a trusted name in British lock manufacturing for over 180 years, evolving from a family business in Willenhall to a leader in the industry. Their commitment to quality and design ensures that every product enhances the safety and convenience of customers worldwide.
Product Specifications:
- Category: Mortice Sashlock
- Type: 3 Lever
- Case Colour: Red
- Handle Piercing Size: 38mm
- Case Height: 109.6mm
- Centres: 57mm
- Faceplate Height: 162mm
- Faceplate Width: 26mm
- Deadbolt Throw: 14mm
- Follower Size: 8mm
- Keys Supplied: 2
- British Standard: No
- UKCA Marked: Yes
- CE Marked: Yes
- Certifire Approved: Yes
- Fire Rated: 60 mins
- Keyed Alike Capability: No
- Handed: Non-handed
- Escutcheon Plates Supplied: No
For a reliable and stylish locking solution, the Union StrongBOLT 3 lever mortice sash lock is an excellent choice for your internal wooden doors.
