Product Overview: Union 5 Lever 2101 Mortice Dead Lock
The Union 5 Lever 2101 mortice dead lock is designed for both internal and external wooden hinged doors, offering a robust security solution. With a compact height of just 70mm, this lock is ideal for retrofitting, fitting seamlessly into existing door structures.
Key Features:
-

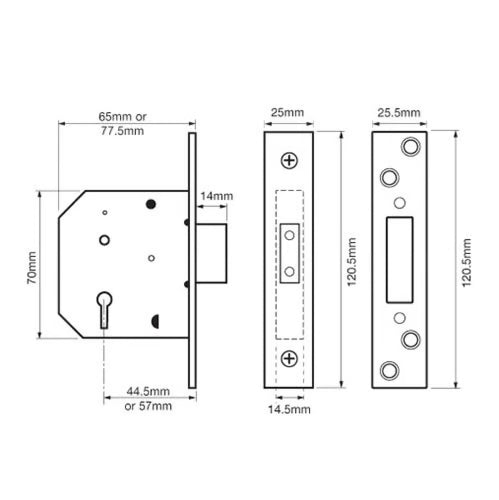

Unique Design: The lock features a distinctive red case, setting it apart from other mortice locks. Refer to the line drawing for precise measurements.
-
Color Options: Available in polished brass or satin chrome finishes to match your door aesthetics.
-
Security Features: The deadbolt extends 14mm and includes hardened steel rollers to resist sawing attacks. It can be locked and unlocked from either side using a key.
-
Compatibility: Suitable for doors up to 54mm thick. For thicker doors, extra-long keys can be provided upon request.
-
Versatile Use: Non-handed design allows installation on doors that open inwards or outwards, regardless of hinge placement.
-

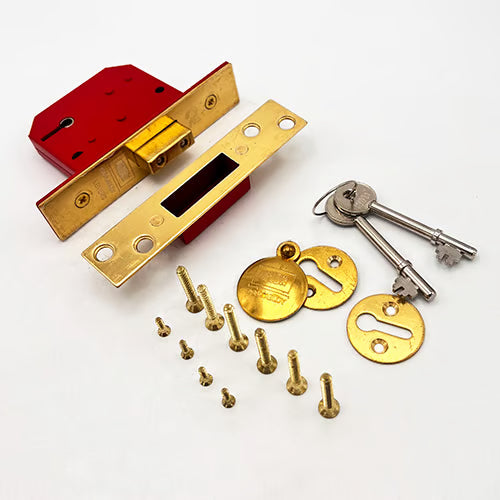

Keying Options: Supplied with 2 nickel-plated steel keys, with the option to order additional keys. Locks can be keyed alike for convenience.
-
Associated Parts: A range of compatible parts, including key blanks and rebate sets for double doors, are available for purchase.
-
Fire Safety Compliance: Tested to BS EN 1634-1:2000 and UKCA marked for use on 60-minute fire doors. Always verify suitability with relevant authorities.
Installation Notes:
-
Locking Mechanism: The mortice lock is fitted within the door, providing a clean and secure installation. Ensure the door thickness meets the Master Locksmith Association's recommendation of at least 44mm.
-
Replacement Considerations: When replacing an existing lock, be aware that new locks may differ in size. Adjustments to the door may be necessary for proper fit.
-
Morticing Tools: For new timber doors, consider using Souber’s DBB morticer for efficient installation.
Company Background:
Union has been a trusted name in high-quality locks and door hardware for over 180 years. Originating in Willenhall, the heart of British lock-making, Union continues to uphold a commitment to quality and innovative design, ensuring customer satisfaction across their extensive product range.
Conclusion:
The Union 5 Lever 2101 mortice dead lock combines security, versatility, and aesthetic appeal, making it an excellent choice for various door applications. For more information or to place an order, please visit our product page.
