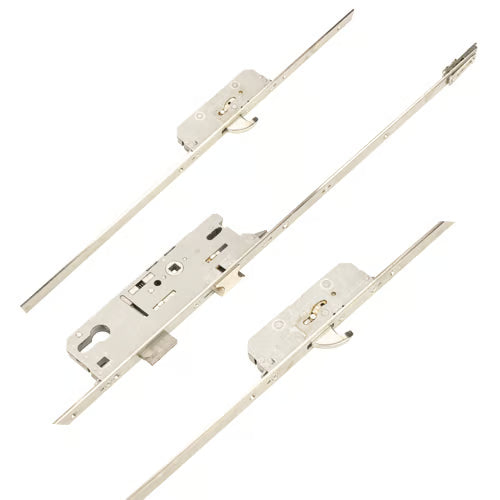

Product Overview: Fuhr 856 - Lift Lever Multipoint Door Lock
The Fuhr 856 multipoint door lock is designed for enhanced security and functionality, featuring 2 hooks, 1 deadbolt, and 1 latch. This lock is primarily suited for UPVC doors but is versatile enough to fit various door types.
Key Features:
-
Lift Lever Operation: The lock operates via a solid spindle lift lever mechanism, requiring the handle to be lifted to engage the locking points.
-
Versatile Compatibility: While commonly used on UPVC doors, the Fuhr 856 series is adaptable for timber and composite doors as well.
-
Distinctive Gearbox Design: Identifying a Fuhr lock is straightforward once removed from the door, thanks to its unique gearbox shape. The triangular feature at the top of the gearbox is a key identifier.
-
Locking Mechanism: The deadbolt throws 20mm, with variations for 25mm and 30mm backset locks. The gearbox dimensions are 220mm x width + 18mm, ensuring a secure fit.
-
Enhanced Locking Feel: The pre-fitted ball bearing and spring provide a more positive locking experience, distinguishing it from other locks that may lack this feature.
Installation and Replacement:
When replacing an existing Fuhr lock, be aware of potential differences in latch height. Older models may have a 28mm latch, while newer versions feature a 33mm latch. If the original latch is intact, it can be reused by simply reversing it during installation.
Operation Instructions:
-
To Lock:
- Lift the handle to engage the locking points.
- Turn the key to secure the deadbolt and locking points.
-
To Unlock:
- Turn the key to unlock.
- Push the handle down to disengage the locking points and retract the latch.
Product Specifications:
- Manufacturer: Fuhr
- Backset: Selectable (refer to measurement guide)
- Centres PZ: 92mm
- Faceplate: Selectable (refer to measurement guide)
- Spindle Size: 8mm
- Hooks: 2
- Deadbolts: 1
- Latch: 1
- Operation: Lift Lever
- Handing: Non-handed
- Distance Between Inner Locking: 1700mm
- Height: 2230mm
- Top Hook to Spindle: 950mm
- Bottom Hook to Spindle: 750mm
- Door Material Compatibility: Timber, Composite
Additional Products:
We offer a variety of associated products for the Fuhr 856 multipoint door lock, including keeps, spindles, handles, and other accessories to ensure a complete locking solution.
Latch Reversal Instructions:
To reverse the latch, simply undo the screw adjacent to the latch, remove it, reverse its position, and reinsert it before replacing the screw.
This comprehensive overview ensures you have all the necessary information for selecting, installing, and operating the Fuhr 856 - Lift Lever multipoint door lock effectively.
