Product Overview: Union 1334 Drawback Lock
The Union 1334 Drawback Lock is an innovative nightlatch designed for residential front doors, providing enhanced security with a unique operation mechanism.
Key Features:
-
Automatic Engagement: The latch engages automatically when the door is closed, ensuring your property is secured without the need for manual locking.
-
Unique Trigger Mechanism: Unlike traditional nightlatches, the 1334 features a sprung trigger lever that retracts the latch. This lever operates like a trigger, allowing for easy access from the inside.
-

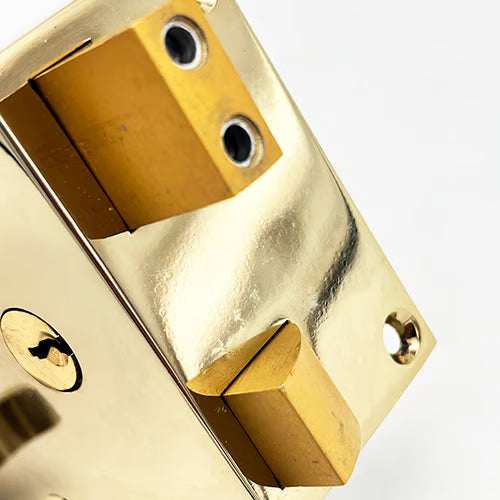

Dual Operation: The key operates both the latch and a separate deadbolt, providing an additional layer of security. Turning the key towards the frame deadlocks the door, while an internal cylinder allows for key deadlocking from inside.
-
Versatile Finishes: Available in a variety of finishes to match your door aesthetics.
-

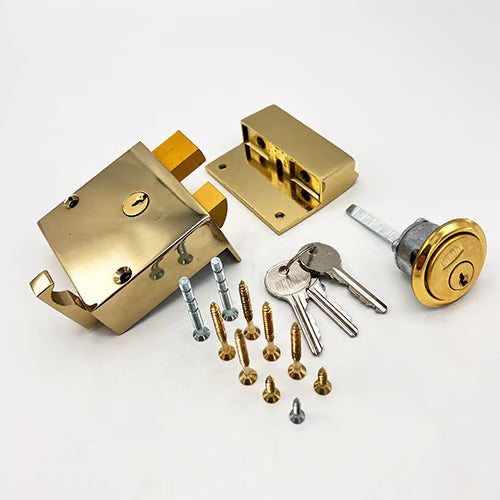

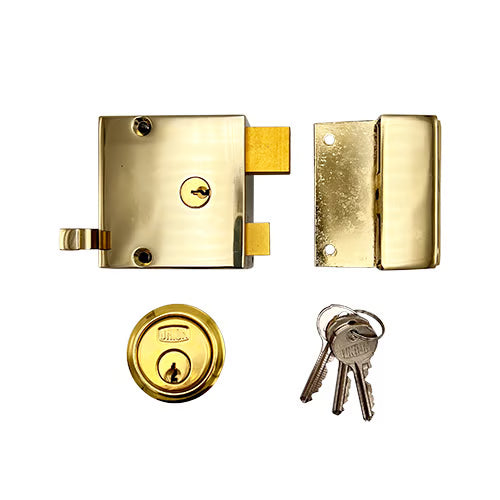

Complete Package: Supplied with a rim cylinder, 3 keys, and fitting instructions for easy installation.
Product Specifications:
- Key Operation: Accessible from the outside
- Drawback Handle: Operated from the inside
-
Bolt Operation:
- 1st full turn throws the bolt
- 2nd turn double throws the bolt
- Backset: 50mm
-
Case Dimensions:
- Width: 73mm
- Height: 76mm
- Bolt Length: 20mm
- Max Door Thickness: 35mm - 60mm
- Cylinder: 5 pin 1X10 Union section included
- Replacement Cylinders: Available for purchase
- Masterkey Systems: Cylinders can be ordered for existing masterkey systems
This lock combines simplicity with functionality, making it an excellent choice for enhancing your home security.
