Saracen 11 & 12 Gearboxes

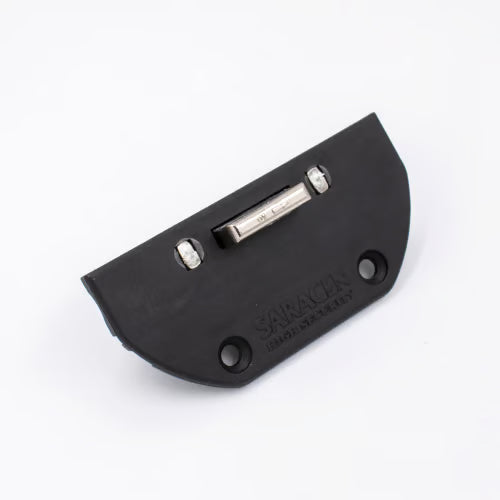

The Saracen 11 and 12 gearboxes are designed for reliable performance in securing side and top hung windows. Featuring a sleek black cover plate, these gearboxes connect seamlessly to rods through a simple push and twist mechanism, ensuring a secure lock.
Key Features:
-
Handed Design:
-

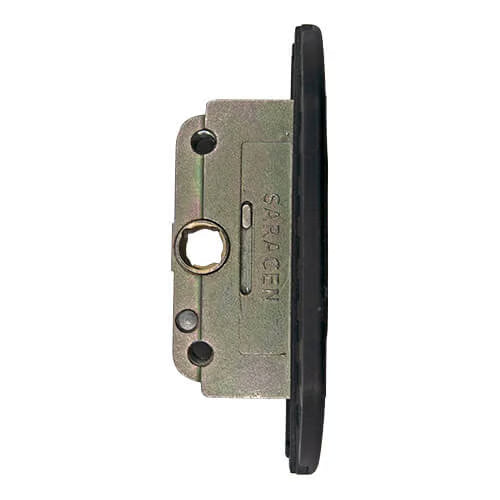

SARACEN11 (Right Hand):
- For side hung windows (viewed from inside): Positioned on the left side, with the deadbolt arrow pointing downwards.
- For top hung windows (viewed from inside): Positioned at the bottom, with the deadbolt arrow pointing to the right.
-

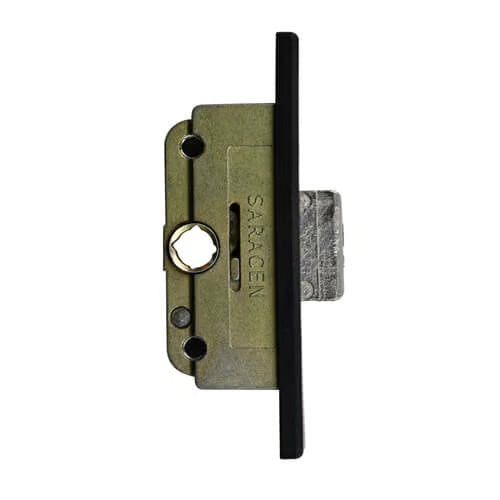

SARACEN12 (Left Hand):
- For side hung windows (viewed from inside): Positioned on the right side, with the deadbolt arrow pointing downwards.
- For top hung windows (viewed from inside): Positioned at the bottom, with the deadbolt arrow pointing to the left.
-
-
Specifications:
- Faceplate Dimensions: 90mm x 40mm
- Body Height: 61mm x 30mm
- Backset: 22mm
- Bolt Throw: 11.5mm
- Rods: Clip Fit (Bayonet Push and Twist)
- Operation: Lift handle to engage locking points
- Extension Pieces: Supplied separately
- Supplied Singles
Compatibility Note: Early versions of these gearboxes featured a metal faceplate and may be stamped with the names Halo, WHS, and Bowater. Ensure you select the correct handed version for your installation needs to guarantee optimal functionality.
